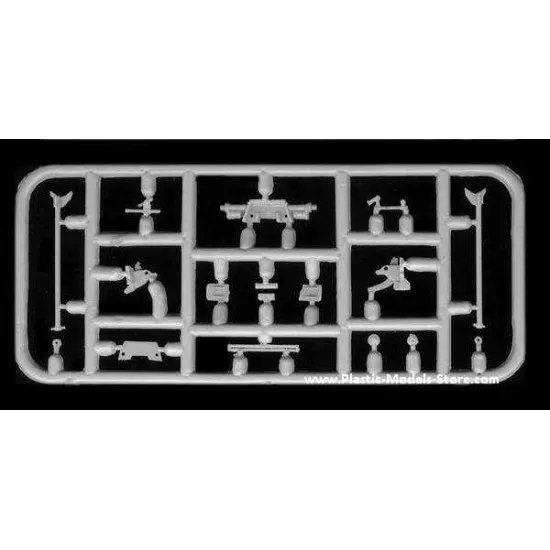

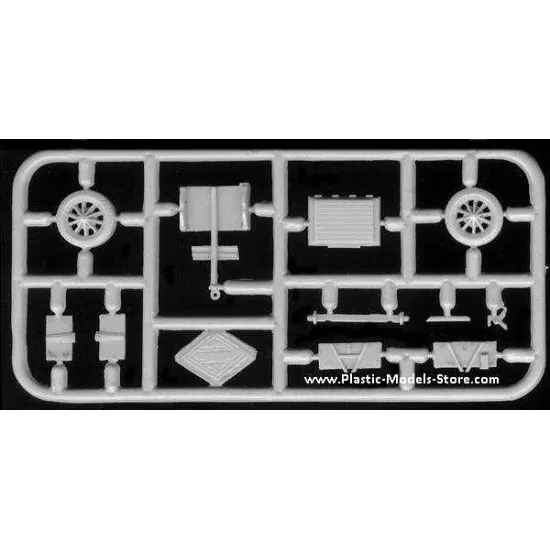

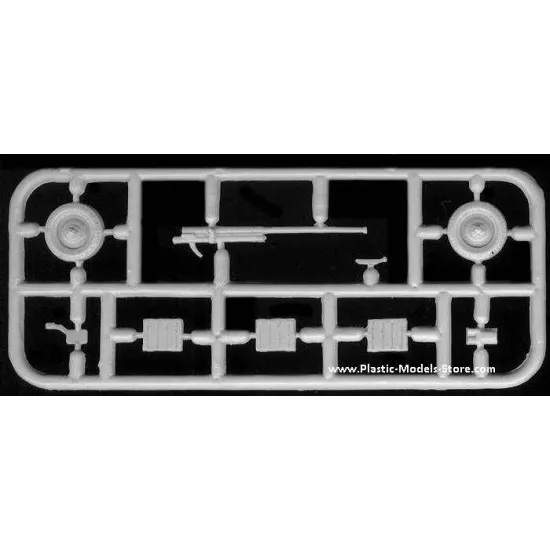

Soviet 45mm Anti-Tank Gun Model 1942
1/72 military vehicle scale plastic model kit
ACE models 72245

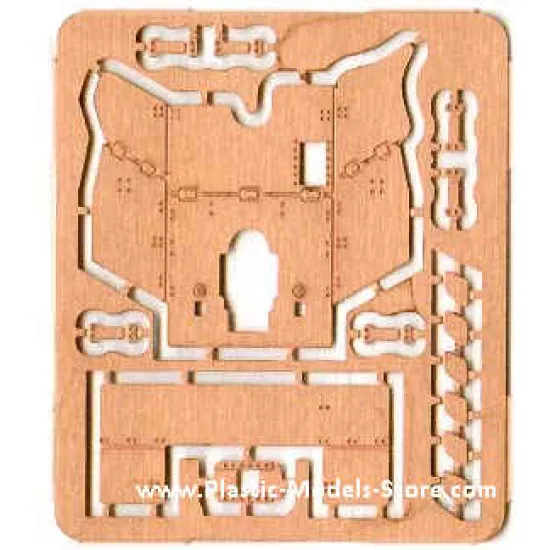

Photo etched parts are included
Manufacturer: ACE Models (Ukraine)
Scale: 1/72
Material: Plastic
Paint: Unpainted, Unassembled, Kit do not contain paints and glue.
Condition: New in Box
M-42 was a 45-mm Soviet light semi-automatic anti-tank gun. Full official name is 45-mm anti-tank gun model 1942 (M-42) (Russian: 45-мм Ð¿Ñ€Ð¾Ñ‚Ð¸Ð²Ð¾Ñ‚Ð°Ð½ÐºÐ¾Ð²Ð°Ñ Ð¿ÑƒÑˆÐºÐ° образца 1942 года (Ðœ-42)). These guns were used from 1942 until the end of Great Patriotic War.
The M-42 was developed by the No. 172 Plant in Motovilikha as an upgrade of the 45-mm anti-tank gun M1937. The gun received longer barrel, shells with more powerful cartridge and thicker shield (7 mm instead of 4.5 mm). Some minor changes were also introduced in order to speed up production.
These guns were used from 1942 until the end of Great Patriotic War. In 1943, due to its insufficient anti-armor capabilities against new German tanks such as Tiger, Panther and Panzer IV Ausf H, the M-42 was partially replaced in mass production by more powerful 57-mm ZiS-2 anti-tank gun. However the M-42 remained in production as it was quite effective against lighter vehicles and could pierce the side armour of Panther and Panzer IV Ausf H. Fragmentation shell and canister shot gave the gun some anti-personnel capability.
Mass production of M-42 ceased in mid-1945. The total number of guns produced is 10,843.
Ammunition
-
Ammunition types:
- Armor piercing.
- Fragmentation.
- Canister.
- Smoke.
-
Projectile weight:
- AP: 1.43 kg (3.15 lbs)
- APCR: 0.85 kg (1.87 lbs)
- Fragmentation: 2.14 kg (4.71 lbs)
-
Armor penetration, AP shell, 90 degrees:
- at 500 m: 61 mm
- at 1000 m: 51 mm
| 45-mm anti-tank gun model 1942 года (М-42) | |
|---|---|
 M-42 in Museum on Sapun Mountain, Sevastopol. |
|
| Type | anti-tank gun |
| Place of origin | USSR |
| Production history | |
| Designer | No. 172 Plant |
| Produced | 1942-1945 |
| Number built | 10,843 |
| Specifications | |
| Weight |
combat: 625 kg (1,378 lbs) travel: 1,250 kg (2,756 lbs) |
|
|
|
| Caliber | 45 mm (1.77 in) |
| Carriage | split trail |
| Elevation | -8° to 25° |
| Traverse | 60° |
| Rate of fire | 15-20 rounds per minute |
| Muzzle velocity | 870 m/s (2,854 ft/s) |
| Maximum range | 4.55 km (2.84 mi) |
- Stock: Out Of Stock
- Model: ACE72245
- DATE ADDED: 16/02/2009
