Light tank T-18/MS1 1/35 PARC MODELS 3505

Light tank T-18/MS1

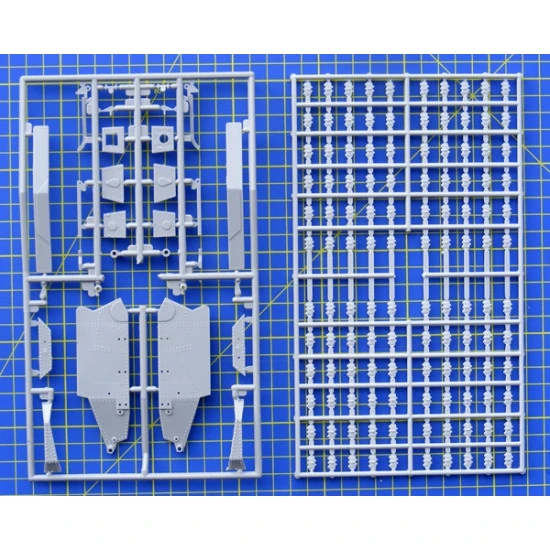

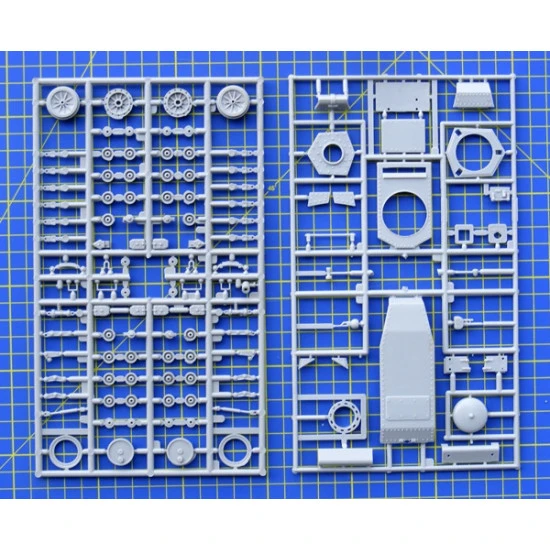

1/35 scale plastic model kit
Parc Models PARC3505

Manufacturer: Parc Models
Scale: 1/35
Material: Plastic
Condition: New in Box


The T-18 light tank (also called MS-1, Russian: Maliy Soprovozhdeniya-Perviy, "First Small [Vehicle for] Support") was the first Soviet-designed tank. Produced from 1928–31, it was based on the Renault FT, with the addition of a vertically sprung suspension.

The T-18 and its derivatives were essentially unsuccessful designs, but they gave Soviet industry its first experiences in designing armoured vehicles, and in the meantime a number of foreign tank designs were available for production.A "Tank Bureau" was formed in May 1924 for the development of Soviet tanks. A specification was issued for a 3-tonne two-man light tank capable of 7.5 mph (12.1 km/h). It would be protected by 16 mm of armour and equipped with a 37 mm (1.5 in) gun. By 1925 the allowable weight had increased to 5 tonnes.

The tank was designed by Professor V. Zaslavsky at a new Tank Bureau set up under the Central Directorate of Military Industries. The 35-horsepower truck engine (a copy of the Italian FIAT 15 ter) was supplied by the Moscow AMO Factory, and the gun was a modified copy of the French 37 mm Puteaux SA 18 cannon. The sprung suspension which would allow a tank to travel faster over rough ground was the biggest improvement over the Renault. A prototype called the T-16 was tested in June 1927.

The T-16 was deemed a failure, as it had problems with its transmission failing too often and its inability to cross trenches more than 1.5 m wide.The T-16's maneuverability was only marginally better than that of the Renault. Meanwhile the КБ ОАТ drew up plans for an improved version of the T-16 which was accepted for production in July as the T-18, with the tank additionally noted as an MS-1 ("Support vehicle, small, type 1").

The T-18's chassis and suspension was improved from the T-16 by the addition of an extra support roller and an independent vertical spring suspension. The 300 mm track of the T-16 was transferred over to the T-18, with some improvements. The engine, a vertical, four-cylinder MS engine, was designed and improved upon by Alexander Mikulin. The engine was capable of a maximum of 35 horsepower. The MS engine was combined with the PSC transmission in one unit rather than being in two separate housings. The PSC transmission gave the tank four forward speeds and one reverse speed. The engine-transmission compartment in the back let air in via holes drilled in the rear plate. This improved protection, but also led to the engine overheating. Electrical equipment included a 6-volt battery, magneto and dynamo, which fed the lamp, horn, rear light, light distribution panel and two portable lamps.Armor for the T-18 consisted of six 8 mm curved plates for the turret (covered with a mushroom-style cap of 3 mm thickness), 16 mm plates for the hull, and the bottom plates were 3 mm thick. An emergency exit was installed in the underside. A small circular or rectangle hatch was placed in the turret for ventilation.

The T-18s armament stayed the same as that found on the FR-17 and T-16, the French 37 mm Model 28, mounted in a Hotchkiss-system mantle. This gave the gun a range movement of 35 degrees horizontal, and +30 to -8 degrees vertical. This was coupled by a simple system of diopter sights. The 37 mm Model 28 was nearly obsolete by this time. That, coupled with a lack of optical sights, gave the T-18 little chance of taking out larger, better armoured opponents. However, with its 10–12 rounds per minute rate of fire and with the use of shrapnel projectiles it proved capable of combating infantry and soft vehicles. A double-barrelled 6.5 mm Fyodorov machine gun was mounted in a ball mount. Total ammunition carried was 104 37 mm shells and 2,016 6.5 mm cartridges. In later models the Fydorov was replaced by the 7.62 mm DT machine-gun.

Demonstration of the T-18 took place in mid-May 1927, but in combat tests its ability to move over rough terrain and fight effectively were not immediately apparent. A special commission comprising representatives of the Supreme Economic Council Mobupravleniya, OAT factory "Bolshevik", Artupravleniya, and the headquarters of the Red Army were on hand for the tests. During trials to overcome obstacles the T-18 behaved no better than the FT-17, with its biggest problem being trenches or ditches wider than 2 m and deeper than approximately 1.2 m. The machines often became stuck trying to cross these obstacles and needed to be pulled out by a tractor or another tank. However, the T-18 proved to be more "nimble" than the FT-17 or T-16 and had a maximum road speed of 18 km/h. In addition, in comparison with foreign analogues, the T-18 had better armour and a little more room for ammunition reserves.

Despite its problems, the T-18 was an improvement over the FT-17 and T-16, so 108 tanks were ordered into production starting in February 1928. Production took place at the Leningrad Obukhov Factory (later renamed Bolshevik Factory). The first batch of 30 tanks were found to have serious technical problems. After several interruptions, and the inclusion of the Motovilikhinsky Machine-Building Plant (Former Perm Artillery) to increase production the two plants were able to deliver 96 of the promised 133 tanks in 1929.

Another round of trials was completed in Moscow to address the T-18s inability to cross 2-m-wide ditches. To solve this problem, a "tail" was added to the front. The tank could now overcome widths of 1.8 m, but it hindered the visibility of the driver and was thus abandoned. An improved T-18 with a better 40-horsepower engine, improved suspension and added turret bustle proceeded from 1929 to 1931, with a total of 960 tanks built. Plans were made to replace the main gun with new 37 mm B-3s, but were never implemented.

A number of experimental designs based on the T-16 and T-18 were tested at the Bolshevik Factory, leading to the T-19 tank with a 90 hp engine in 1931, and the T-20 with a 60 hp engine. The new T2K Tank Design Bureau (later renamed Morozov Design Bureau) at the Kharkov Locomotive Factory used the T-18 as the basis for the new T-24 tank.
