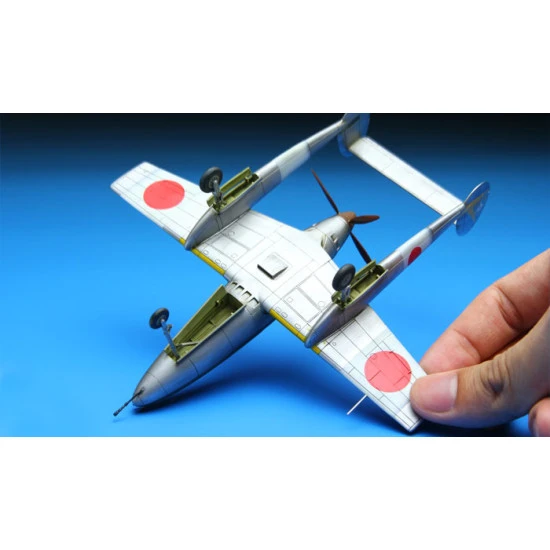

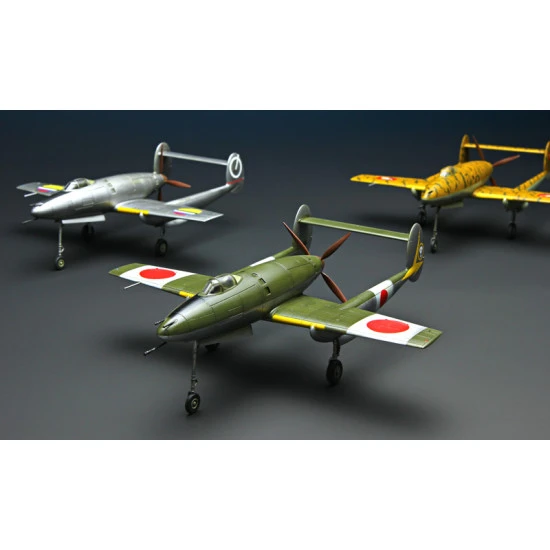

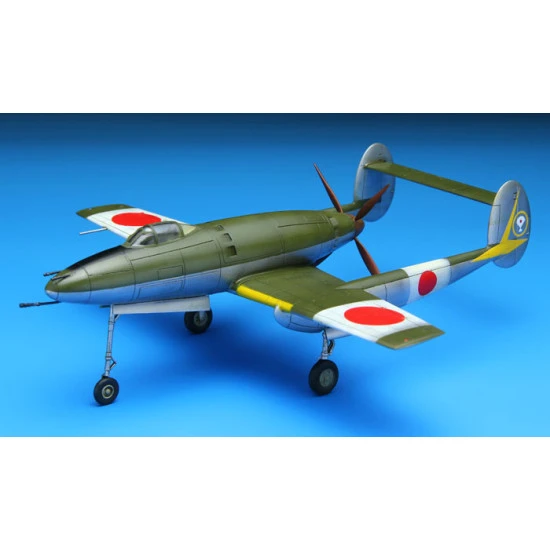

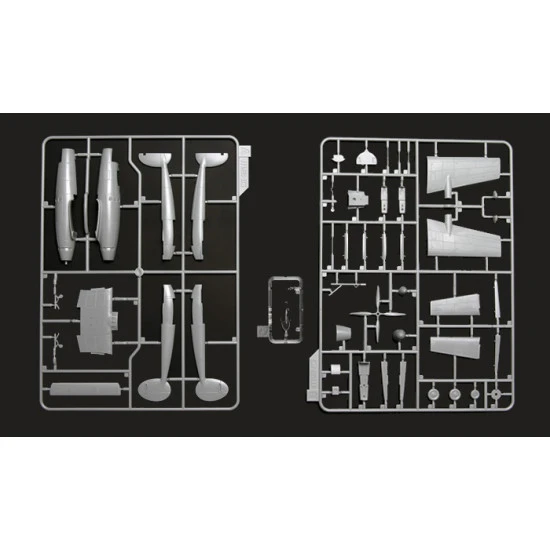

IMPERIAL JAPANESE ARMY Ki-98 ATTACK AIRCRAFT 1/72 MENG 002

IMPERIAL JAPANESE ARMY Ki-98 ATTACK AIRCRAFT
MENG DS002

Manufacturer:MENG
Scale: 1/72
Material: Plastic
Paint: Unpainted, Unassembled, Kit do not contain paints and glue.
Condition: New in Box


The Mansyū Ki-98, (also written as Manshū Ki-98),was a Japanese ground-attack aircraft proposed by Mansyū (Manshūkoku Hikōki K.K. - Manchuria Airplane Manufacturing Company Ltd.) during World War II for use by the Imperial Japanese Army Air Force. The first prototype was deliberately destroyed before Japan surrendered.By late in 1942 the IJN issued requirements for new combat aircraft, including a ground attack aircraft. Kawasaki proposed the Kawasaki Ki-102 and Mansyū the Ki-98. The Ki-98 was to have been a single-seat, twin-boom, low-wing monoplane with a central nacelle housing both the cockpit and a turbosupercharged 1,643-kilowatt (2,200-hp) Mitsubishi Ha-211 Ru radial engine behind the pilot driving a four-bladed pusher propeller rotating between the booms.The under-slung booms extended aft from slightly forward of the leading edge of the wing with ovoid fins supporting the tailplane and elevator between them.The aircraft had a retractable tricycle landing gear, bubble canopy, and an armament of one 37-mm and two 20-mm cannon mounted in the nose.Entry to the cockpit was to have been through a door in the nose undercarriage bay.

In the Spring of 1944 the IJN instructed Mansyū to adapt the design as a high-altitude fighter. The major change being the engine, substituting the turbocharged Mitsubishi Ha-211 Ru for the original Mitsubishi Ha-211 III. The increased bulk of the new engine requiring the fuselage to be enlarged and the larger diameter propeller necessitated moving the booms outboard.Construction of the first prototype was delayed by bombing raids on the Harbin factory till January 1945. The first prototype was still under construction when the Soviet Union invaded Manchuria (Mǎnzhōuguó) early in August 1945; the Manchurian Imperial Army ordered all documentation and material to be destroyed to prevent capture by Soviet forces, bringing the Ki-98 project to an end.General characteristics

Crew: 1

Length: 11.4 m (37 ft 5 in)

Wingspan: 11.26 m (36 ft 11 in)

Height: 4.29 m (14 ft 1 in)

Wing area: 23.99 m2 (258.2 sq ft)

Empty weight: 3,500 kg (7,716 lb)

Gross weight: 4,500 kg (9,921 lb)

Powerplant: 1 × Mitsubishi Ha-211 Ru 18-cyl. fan assisted air-cooled radial engine, 1,600 kW (2,200 hp) for take-off

1,461.6 kW (1,960 hp) at 2,000 m (6,562 ft)

1,305 kW (1,750 hp) at 8,500 m (27,887 ft)

Propellers: 4-bladed metal constant speed pusher propeller driven by a 2 m (7 ft) long extension shaft, 3.6 m (11 ft 10 in) diameter

Performance

Maximum speed: 730 km/h (454 mph; 394 kn) at 10,000 m (32,808 ft)

Range: 1,249 km (776 mi; 674 nmi)

Endurance: 2 hours 15 minutes at 499 km/h (310 mph)

Service ceiling: 10,000 m (32,808 ft)

Rate of climb: 15.15 m/s (2,982 ft/min)

Time to altitude:

5,000 m (16,404 ft) in 5 minutes 30 seconds

Wing loading: 187.5 kg/m2 (38.4 lb/sq ft)

Power/mass: 0.5 kW/kg (0.3 hp/lb)

Armament

Guns:

1× Ho-204 37-mm cannon

2× Ho-5 20-mm cannon
